Featured Product

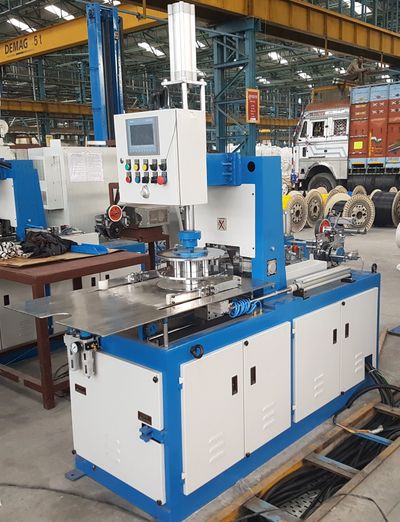

Single Head Auto Coiling Machine
The Single Station Auto Coiler is our signature product.
Wire Range : 1 mm to 6 mm dia PVC Flexible Core
Coil Size : OD Range - 200 to 400 mm
ID Range - 80 to 150 mm
Height Range - 40 to 120 mm
Production : 3 Coils/min of 90 meter Length
Output of 2.5 sq. mm. Wire
Control Panel : PLC based control, HMI Touch Screen Display.
Counter : Dual Wheel Counter. Counting done by Encoder pulses.
Display on touch screen
Traverse : Motorized Ball Screw Synchronized for Fine Pitch Setting
through Servo Motor Drive & Auto Home Restart
Drive Power : 11 to 18 kw, 415 Volts, 50 c/s, 3 ph, AC
Overall Space : 4 M x 1.5 M x 2.2 M High
Air Supply : 5 kg/sq. cm., Qty. 2000 cc / min.
Approx. Weight : 1800 Kg.
Pay Off : 630 to 1000 ABS Bobbin Driven Pay Off with Dancer
Accumulator Controls Speed and Wire Tension
OR
630 to 1000 ABS Bobbin Conical Flyer Pay Off with
Wire Tension Device
Featured Product
Dual Head Auto Coiling Machine
Wire Range : 1 mm to 6 mm dia PVC Flexible Core
Coil Size : OD Range - 200 to 320 mm
ID Range - 80 to 120 mm
Height Range - 40 to 120 mm
Production : 4 Coils/min of 90 meter Length
Output of 2.5 sq. mm. Wire
Control Panel : PLC based control, HMI Touch Screen Display.
Counter : Dual Wheel Counter. Counting done by Encoder pulses.
Display on touch screen
Traverse : Motorized Ball Screw Synchronized for Fine Pitch Setting
through Servo Motor Drive & Auto Home Restart
Drive Power : 14 to 21 kw, 415 Volts, 50 Hz, 3 ph, AC
Overall Space : 4 M x 2 M x 2.2 M High
Air Supply : 5 kg/sq. cm., Qty. 2000 cc / min.
Approx Weight : 1800 Kg.
Pay Off : 630 to 1000 ABS Bobbin Driven Pay Off with Dancer
Accumulator Controls Speed and Wire Tension
OR
630 to 1000 ABS Bobbin Conical Flyer Pay Off with
Wire Tension Device
Featured Product
Semi Auto Dual Coiler
Wire Range : 2 mm to 12 mm dia PVC Flexible Wire/Cable
Coil Size : OD Range - 200 to 550 mm
ID Range - 120 to 350 mm
Height Range - 40 to 150 mm
Production : 1.25 Coils/min of 100 meter Length
Output of 2.5 sq. mm. Wire
Control Panel : PLC based control, HMI Touch Screen Display.
Counter : Dual Wheel Counter. Counting done by Encoder pulses.
Display on touch screen
Traverse : Motorized Ball Screw Synchronized for Fine Pitch Setting
through Servo Motor Drive & Auto Home Restart
Drive Power : 11 to 18 kw, 415 Volts, 50 Hz, 3 ph, AC
Overall Space : 4 M x 1.5 M x 2 M High
Air Supply : 5 kg/sq. cm., Qty. 2000 cc / min.
Approx Weight : 1500 Kg.
Pay Off : 800 to 2000 ABS Bobbin Driven Pay Off with Dancer
Accumulator Controls Speed and Wire Tension
Featured Product
Portal Type Traversing Take Up/Pay Off
• Drum Size 800 dia. to 3000 dia.
• AC Variable Frequency Drive.
• Pintle Support Bushes of 80 mm, 100 mm.
• Motorized Drum Lifting.
• Motorized Drum Clamping.
• Motorized Traversing on Floor Rails.
Featured Product
High Speed Printing Machine
Wire Range : 2 mm to 10 mm dia PVC Insulated Flexible Cable
Line Speed : Max. 700 meters/min.
Control Panel : PLC based control, HMI Touch Screen Display.
Printing Wheel : Motorized Print Wheel 86 mm dia. & 12.7 mm bore
Controlled by Variable Frequency Drive
Drive Power : 2.2 kw, 415 Volts, 50 Hz, 3 ph, AC
Overall Space : 0.5 M x 0.7 M x 1.5 M High
Approx Weight : 200 Kg.
• Ink Reservoir Tank of 1 Litre.
• Print Wheel Dia 86 mm & Bore 12.7 mm.
• Adjustable working height 900 mm to 1200 mm.
• White & Black separate color Ink supply systems for saving time during
Colour change. Includes Motor with Pump, Ink Tray, Spray Nozzle, 3
way Valve, Ink Supply & Return Tubing & Ink Tank for each System.
• Concave & Flat Print Wheels, Hardened & Chrome Plated, Script duly etched.
• Operating Direction can be changed easily if required.
• Ink Spray Injection System at Bottom of Wheel by High Pressure precision
Gear Pump via Geared Motor and 3 way flow regulation Valve.
Featured Product
Medium Speed Printing Machine
Wire Range : 2 mm to 10 mm dia PVC Insulated Flexible Cable
Line Speed : Max. 250 meters/min.
Printing Wheel : Motorized Print Wheel 86 mm dia. & 12.7 mm bore
Drive Power : 1.5 kw, 415 Volts, 50 Hz, 3 ph, AC
Overall Space : 0.5 M x 0.5 M x 1.2 M High
Approx Weight : 150 Kg.
Featured Product
Dual Station Printing Machine
Wire Range : 2 mm to 10 mm dia PVC Insulated Flexible Cable
Line Speed : Max. 250 meters/min.
Printing Wheel : Motorized Print Wheel 86 mm dia. & 12.7 mm bore
Drive Power : 1.5 kw, 415 Volts, 50 Hz, 3 ph, AC
Overall Space : 0.5 M x 0.5 M x 1.2 M High
Approx Weight : 150 Kg.
Featured Product
Powder Applicator
• Applies uniform Powder to Round & Flat 4 Cores.
• Motorized Screw Conveyor Lifts powder from bottom powder
reservoir and drops on upper vibrating tray.
• Reservoir & Tray heaters with Timer switch.
• Excess Powder wiping brush at Tray Exit.
• Entry/Exit guide box rolls for Single Cable / 4 cores.
• Adjustable Cable Height between 900 to 1100 mm.
• Dimensions: 1000 L x 500 W x 1800 H
• Power Supply: 1.5 kw, 415 V, 3 ph AC.
Featured Product
Driven Pay Off
• 500 to 1000 dia Bobbin supported between Pintles.
• Bobbin Lifting and Clamping between
pintles by Air Cylinders via Hand Lever
Valves/Push Buttons.
• Bobbin driven by Geared motor via Timer Pulleys.
• AC Variable Frequency Drive controls
Bobbin speed via Dancer
Featured Product
Take Up with Auto Traversing
• 500 to 1000 dia Bobbin supported between Pintles.
• Bobbin Lifting and Clamping between
pintles by Air Cylinders via Hand Lever
Valves/Push Buttons.
• Bobbin driven by Geared motor via Timer Pulleys.
• AC Variable Frequency Drive controls
Bobbin speed via Dancer
• Traverse motor Frequency drive synchronized with
Bobbin Speed for controlling Wire Pitch.
